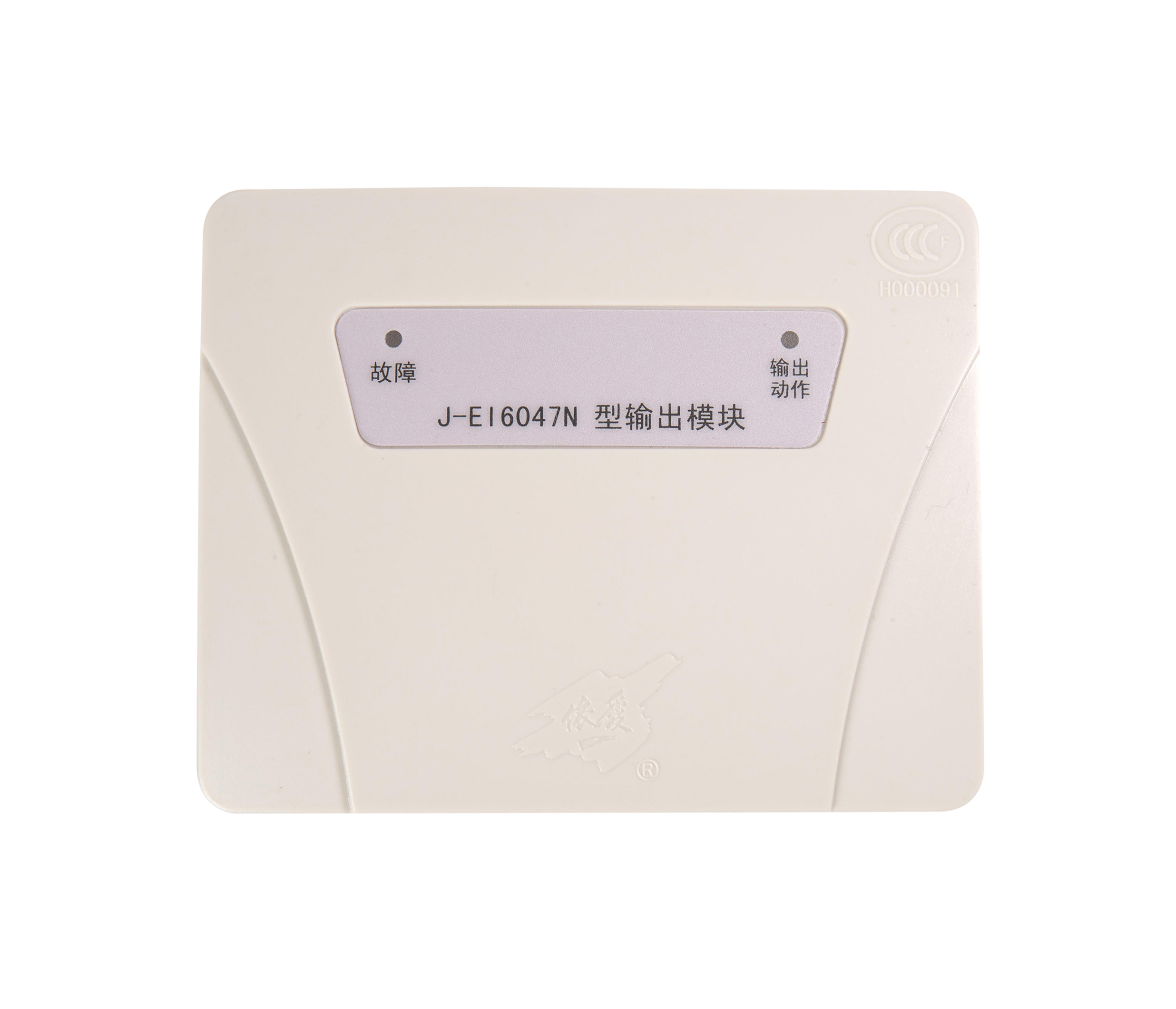

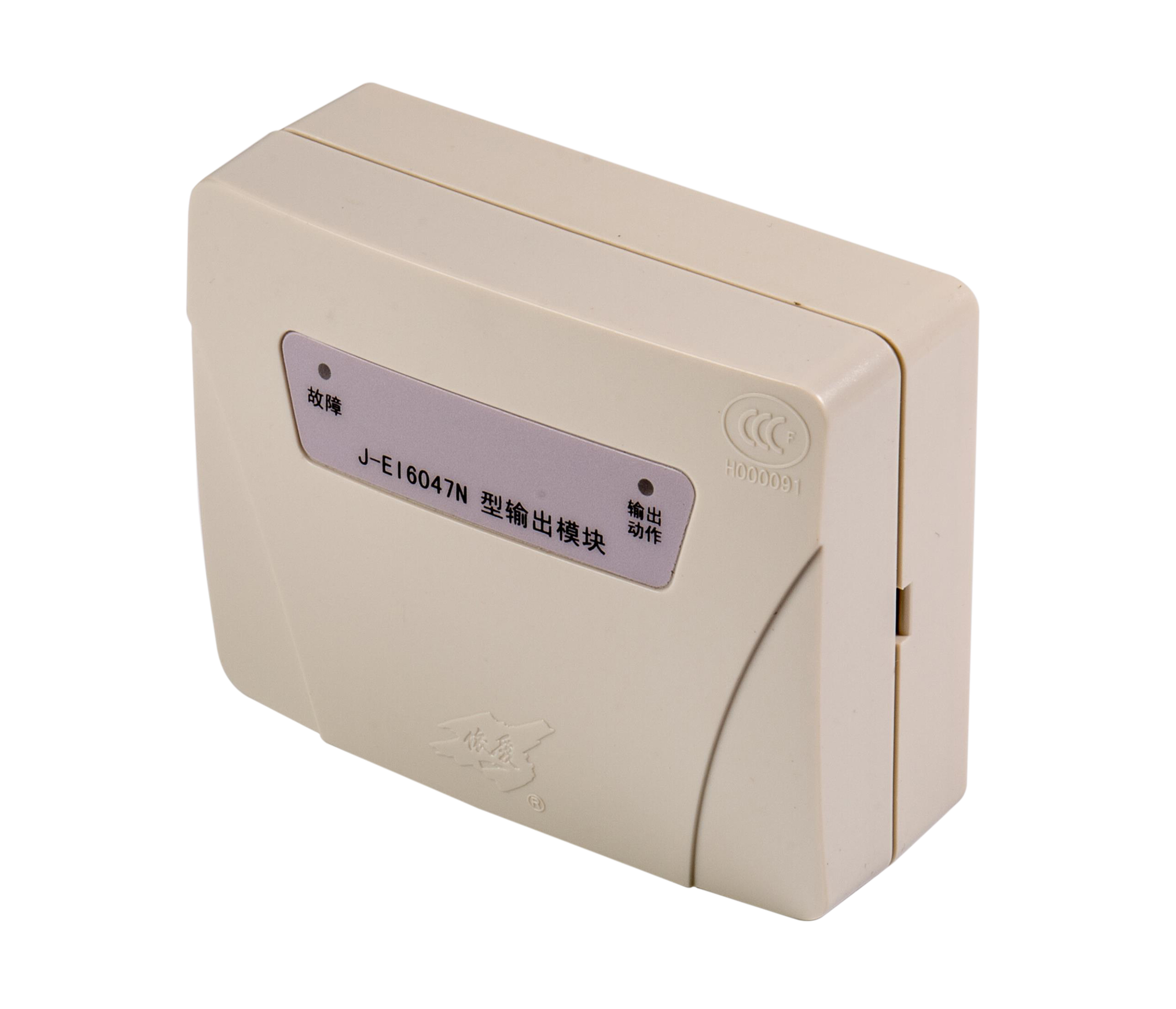

Output Module(J-EI6047N)
Product Overview:


· Double-pole double-throw relay, which is suitable to the control of equipment that do not need operating feedback signals such as fire control broadcast, non-coded acousto-optic/alarm bell.

· Able to detect shut-off failures of 24V power supply


· Electronically encoded with only one ID; online addressing by controller or addressing by encoder; automatic log-in, convenient installation and debugging.

· Able to detect shut-off failures of 24V power supply

· Plug-type design, convenient installation and wiring.


· Working temperature: -10℃ ~ +50 ℃

   · Working humidity: <95% RH (No condensation of moisture)

   · Bus working voltage: 24V Pulsating voltage· 24V power supply: DC 24V±1015%


   · Standby current: <0.35mA (bus); <1.0mA (DC24V)

   · Operating current: <1.5mA (bus); <20mA (DC24V)

    Relay contact: Two sets normally-on/off, DC30V/1A; AC120V/1A DC

  · Wiring system: Two-wire bus (non-polarized) DC 24V power supply
